Colour
The high-speed airflow of approx. 270 km/h*1 generated by the Jet Fan Drying System is applied to the clothes and by spreading it out within the large drum capacity of approx. 80 litres, dries the clothes while smoothing out wrinkles.
* Tested by Hitachi.
The speed near the air outlet calculated from the area of the air outlet and wind volume.
* The image is for illustrative purposes only.
1Jet Fan Drying System
2Large Drum Capacity of Approx. 80 Litres
with a Diameter*2 of Approx. 530 mm
* The image is for illustrative purposes only.
1Jet Fan Drying System
Generates a high-speed airflow of approx. 270 km/h.*1
Heater
MotorRotates at high speed.
ImpellerGenerates high-speed wind.
DiffuserEfficiently increases pressure.
ScrollLarge air volume flow path structure.
2Large Drum Capacity of Approx. 80 Litres
with a Diameter*2 of Approx. 530 mm
Large drum capacity to spread out the clothes.
*1 Tested by Hitachi. The speed near the air outlet calculated from the area of the air outlet and wind volume.
*2 Diameter of the inside of the drum.
1Jet Fan Drying System
Generates a high-speed airflow of approx. 270 km/h.*1
Heater
MotorRotates at high speed.
ImpellerGenerates high-speed wind.
DiffuserEfficiently increases pressure.
ScrollLarge air volume flow path structure.
*1 Tested by Hitachi. The speed near the air outlet calculated from the area of the air outlet and wind volume.
2Large Drum Capacity of Approx. 80 Litres
with a Diameter*2 of Approx. 530 mm
Large drum capacity to spread out the clothes.
* The image is for illustrative purposes only.
*2 Diameter of the inside of the drum.
Effortless laundry by reducing the work of ironing.
The high-speed airflow smooths out wrinkles, and you can wear clothes directly out of the washing machine.
* Tested by Hitachi.
Tested model and program: Comparison between the model BD-D80CVE without Wind Iron / Cotton / Dry Only 3 kg and BD-D120XGV with Wind Iron / Intelligent Wash / Wash & Dry 3 kg. The performance may differ depending on the amount of clothes and materials and items being dried together.
Shirt / Cotton 100%
* Tested by Hitachi.
Tested model and program: Comparison between the model BD-D80CVE without Wind Iron / Cotton / Dry Only 3 kg and BD-D120XGV with Wind Iron / Intelligent Wash / Wash & Dry 3 kg. The performance may differ depending on the amount of clothes and materials and items being dried together.
Ready to wear without ironing.
Shirt without Anti-Wrinkle Processing
Polyester 65%
Cotton 35%
Shirt without Anti-Wrinkle Processing
Cotton 100%
Handkerchief
Cotton 100%
* Tested by Hitachi. Tested model: BD-D120XGV.
Tested program: Intelligent Wash / Wash & Dry.
The performance may differ depending on the amount of clothes and materials and the combination of laundry being dried.
This good, without ironing.
Shirt without Anti-Wrinkle Processing
Polyester 65%
Cotton 35%
Shirt without Anti-Wrinkle Processing
Cotton 100%
Handkerchief
Cotton 100%
* Tested by Hitachi. Tested model: BD-D120XGV.
Tested program: Intelligent Wash / Wash & Dry.
The performance may differ depending on the amount of clothes and materials and the combination of laundry being dried.
Few wrinkles even in heavy loads.
Shirt without Anti-Wrinkle Processing
Polyester 65%
Cotton 35%
Shirt without Anti-Wrinkle Processing
Cotton 100%
Handkerchief
Cotton 100%
* Tested by Hitachi. Tested model: BD-D120XGV.
Tested program: Intelligent Wash / Wash & Dry.
The performance may differ depending on the amount of clothes and materials and the combination of laundry being dried.
Make a difference in the fluffiness of your towels.
Towels / Cotton 100%
* Tested by Hitachi.
Tested model: BD-D120XGV.
Tested program: Intelligent Wash / Wash & Dry 5 kg.
The performance may differ depending on the amount of clothes and materials and the combination of laundry being dried.
Washing and drying can be finished in approx. 60 minutes.
* The image is for illustrative purposes only.
* For loads under 1 kg of clothes such as 4 shirts. The performance may differ depending on the type and materials of clothes.
Suitable for busy mornings and before going out.
Steam Iron program quickly and gently reduces wrinkles in folded clothes.
Two shirts take only 15 minutes.
This program reduces wrinkles in folded clothes and removes odours by making a high-humidity environment inside the drum and by applying a high-speed airflow to the clothes.
* For loads under 0.5 kg of dry clothes.
* The effect may differ depending on the materials of laundry items.
Not all kinds of wrinkles and odours can be removed.
* The image is for illustrative purposes only.
* For loads under 0.5 kg of dry clothes.
* The effect may differ depending on the materials of laundry items.
Not all kinds of wrinkles and odours can be removed.
For items that cannot be washed easily, now you can keep them clean without deteriorating to prevent deformation in items like suits, stuffed toys, and shoes. With Air Wash, heated and moisturised air reduces bacteria*1 and suppresses virus activities,*2 and also deodorises the items.
* For loads under 1 kg.
Items such as leather and sponge materials cannot be washed.
Not all kinds of odours, viruses and bacteria can be removed or suppressed.
*1 Air Wash [Maximum load: 1 kg; Required time (guide): 60 min] Test laboratory: Kitasato Research Center for Environmental Science / Test report number: 2021_0257 / Test method: Measurement of the rate of decrease of bacteria on plates attached to the test cloth. / Test result: Bacteria reduction rate of 99%.
*2 Air Wash [Maximum load: 1 kg; Required time (guide): 60 min] Test laboratory: Kitasato Research Center for Environmental Science / Test report number: 2021_0257 / Test method: Measurement of the rate of decrease of viruses on plates attached to the test cloth. / Test result: Virus reduction rate of 99%.
* The image is for illustrative purposes only.
Smart washing and clean result without troublesome settings required. The washing method and operating time are automatically determined according to various washing conditions such as the type of detergent, the textile of the laundry items, etc.
* Tested by Hitachi. Tested model: BD-120XGV. Tested program: Intelligent Wash. When washing 7.2 kg (60% of washing loading capacity).
The effect varies depending on the type and amount of dirt.
Stain: Ketchup / Cotton 100%
* Tested by Hitachi. Tested model: BD-120XGV. Tested program: Intelligent Wash. When washing 7.2kg (60% of washing loading capacity). Compare clothes after spin. The effect varies depending on the type and amount of dirt.
Intelligent Wash automatically determines the washing method and time depending on various washing conditions.
You can do your laundry smartly and cleanly without detailed settings required.
Set to the appropriate water level according to
the amount of clothes.
Adjust the amount of detergent*1 and washing time according to the hardness and temperature of
the water.
Change washing control suitable for liquid detergent or powder detergent.
* It may not be distinguishable depending on the type and
amount of detergent.
Adjust tub rotation speed to maximise
the cleaning effect.
Reduce the amount of water by sensing synthetics.
Shorten rinsing time by sensing the rinsing condition.
Shorten spinning time according to the remaining amount of water.
*1 Applies to only BD-D120XGV and BD-D100XGV (When the Auto Dosing System program is ON.).
Reduce the amount of water by sensing synthetics.
Shorten rinsing time by sensing
the rinsing condition.
Shorten spinning time according to the remaining amount of water.
Clean water at the bottom of the outer tub is pushed up to clean the entire tub.
the Stainless
Steel Tub
Inside of
the Outer Tub
* An old Hitachi model made in Japan without Auto Self Clean function.
The level of dirt differs depending on the conditions of use.
* Images are for illustrative purposes only.
*1 Test Laboratory: Kitasato Research Center for Environmental Science / Test Report Number: 2021_0192 / Test Method: Measurement of the rate of decrease of mould spores on culture plates attached to the inside of the outer tub and the outside of the stainless steel tub when using the Auto Self Clean function. / Test Object: The outside of the stainless steel tub and the inside of the outer tub. / Test Result: Mould reduction rate of 99%.
*2 Test Laboratory: Kitasato Research Center for Environmental Science / Test Report Number: 2021_1192 / Test Method: Measurement of the rate of decrease of bacteria on plates attached to the inside of the outer tub and the outside of the stainless steel tub when using the Auto Self Clean function. / Test Object: The outside of the stainless steel tub and the inside of the outer tub. / Test Result: Bacteria reduction rate of 99%.
*1 Test Laboratory: BOKEN / Test report number: 213251774-1, 213237371-1
/ Test method: JIS Z 2801 /
Test object: Shower Lifter and Door Gasket. /
Test result: Antibacterial activity value of 2.0 or more.
*2 Test Laboratory: BOKEN / Test report number: 213251774-2, 213237371-2
/ Test method: JIS Z 2911 /
Test object: Shower Lifter and Door Gasket. /
Test result: Mould resistance display 0.
The simple, flat design composed of the minimum necessary elements creates a beautiful area in harmony with an elegant space.
*1 Applies to only BD-D120XGV and BD-D100XGV.
* Applies to only BD-D120XGV and BD-D100XGV.
* Images are for illustrative purposes only.
* The image is for illustrative purposes only.
* The image is for illustrative purposes only.
* The image is for illustrative purposes only.
The technology has achieved low vibration and low noise operation to not disturb your loved ones even while achieving high-speed spinning of 1,600 RPM and large capacity with a 530 mm diameter washing tub.
* The image is for illustrative purposes only.
A5-Ply Liquid Load Balancer
Reduces vibration and vibrating width when the tub rotates.
B4-Friction Damper
Suppresses vibration of the tub and impact transmitted to the floor.
Detects complex vibrations in the front-back, left-right, and up-down directions and adjusts the tub rotating speed to suppress vibrations.
*1 Diameter of the inside of the drum.
* The image is for illustrative purposes only.
A5-Ply Liquid Load Balancer
Reduces vibration and vibrating width when the tub rotates.
B4-Friction Damper
Suppresses vibration of the tub and impact transmitted to the floor.
Detects complex vibrations in the front-back, left-right, and up-down directions and adjusts the tub rotating speed to suppress vibrations.

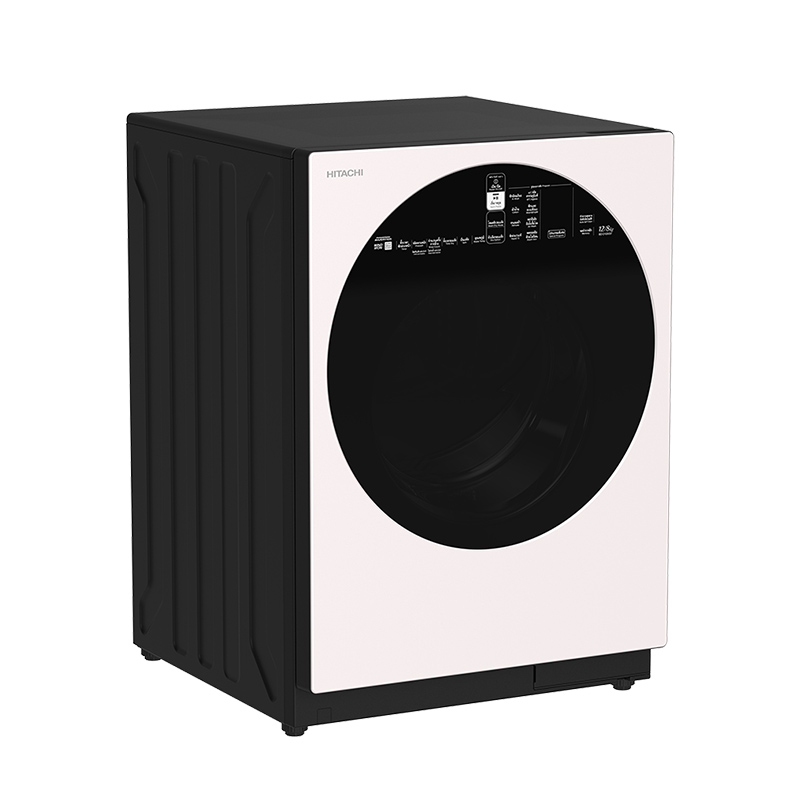

| Model | BD-D120GV | |
|---|---|---|
| Type | Front Loading Washer Dryer | |
| Capacity | Washing Capacity | 12kg |
| Drying Capacity | 8kg | |
| General | Colour | White |
| Interface | Glass Touch Switch | |
| Drum Type | Big Drum 530 mm Diameter | |
| Gasket | Antibacterial*1 & Mouldproof*2 | |
| Shower Lifter | Antibacterial*1 & Mouldproof*2 | |
| Wide Opening Door | ● | |
| Inverter | ● | |
| Dual Vibration Control System + | ● | |
| Performance | LabelNo.5 | 5★★★ |
| Feature | Reload | ● |
| Prewash | ● | |
| Rinse Hold | ● | |
| Rinse Count | ● | |
| Max Spin Speed (RPM) | 1,600 | |
| Water Temperature | Cold/30℃/40℃/60℃/90℃ | |
| Child Lock | ● | |
| Timer | ● | |
| Auto Self Clean | ● | |
| Interior Lighting | - | |
| Memory (Program+Setting) | ● | |
| Drying Feature | Wind Iron | ● |
| Time Dry | ● | |
| Dry Option | Low Temp. / Extra Dry | |
| Auto Dosing System | Liquid Detergent | - |
| Fabric Softener | - | |
| Low Level Notification | - | |
| Adjust Function | - | |
| Smartphone App | Hitachi Washer App | - |
| Program | Intelligent Wash | ● |
| Cotton | ● | |
| Delicate | ● | |
| Rapid 15 | ● | |
| 60℃ Hygiene | ● | |
| Wash & Dry 60 | ● | |
| Air Wash | ● | |
| Steam Iron | ● | |
| Baby Care | ● | |
| Duvet | ● | |
| Spin | ● | |
| Dry Only | ● | |
| Tub Wash | ● | |
| Rinse & Spin | ● | |
| Dimensions (mm) | Width | 600 |
| Depth | 650 | |
| Height | 850 | |
| Weight (Net/Gross, kg) | 72 / 77 | |
