Colour
Harnessing the best of Hitachi technology, Hitachi’s washing machines are equipped with perpetually innovative features that ensure an effortless washing experience.
From its Auto Dosing System that measures the proper amount of detergent and fabric softener needed, to its AI Wash sensing that smartly adjust wash methods and operating time based on the laundry conditions.
With Hitachi, you’ve got it made.
* The image is for illustrative purposes only.
Proper amounts of liquid detergent and fabric softener are automatically dispensed according to the washing loading amount for a clean finish. Also, after dispensing liquid detergent, the route is washed with clean water.
* The image is for illustrative purposes only.
1Tank for Liquid Detergent : 400 mL
2Tank for Fabric Softener : 500 mL
1Tank for Liquid Detergent : 400 mL
2Tank for Fabric Softener : 500 mL

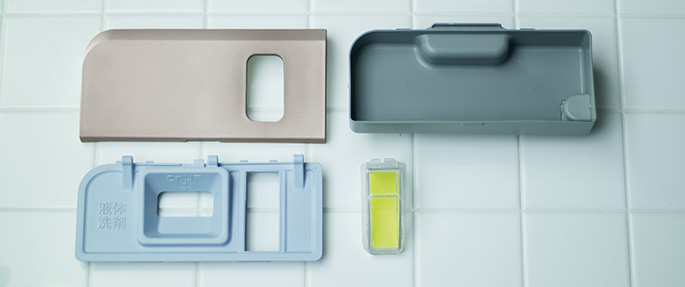

Detachable tank with handles
Easy to clean as the tank can be disassembled
Allows you to check the remaining amount of liquid detergent and fabric softener.
Liquid Surface
When the surface of the liquid reach "E",
it is time to refill
Say goodbye to bulky detergent bottles.
Enjoy a neater and cleaner living space.
Also, the tempered glass lid is resistant to scratches.
Efficient washing and clean results without the need for troublesome setting. The washing method and operating time are automatically determined according to various washing conditions such as the type of detergent, the textile of the laundry items, etc.
* Stain: Ketchup / Cotton 100% / Tested by Hitachi. Tested model : BW-DV100E (equivalent model to BW-DX105FJ) / Test program : Normal with AI Wash / Wash 6 kg (60% loading to the test model). Compare clothes after spinning.
The effect may differ depending on the type and amount of stain.
AI Wash automatically determines the washing method and time depending on various washing conditions.
You can do your laundry smartly and cleanly without detailed settings required.
*1 Sensing even when AI Wash is OFF.
*2 Reduce the amount of detergent when Auto Dosing System is ON.
*3 It may not be distinguishable depending on the type and amount of detergent.
*4 It may not be distinguishable depending on the type and amount of stain.
*1 Sensing even when AI Wash is OFF.
*2 Reduce the amount of detergent when Auto Dosing System is ON.
*3 It may not be distinguishable depending on the type and amount of detergent.
*4 It may not be distinguishable depending on the type and amount of stain.
A remarkable white-wash is achieved by first penetrating with high concentration of detergent liquid and washing,
then washing by having the high flow water shower circulate the detergent liquid.
* The image is for illustrative purposes only (High water level).
 |
 |
|||
Before Wash |
After Wash |
Before Wash |
After Wash |
|
Stains on shirt sleeves and collar / Polyester 65% Cotton 35% |
Dirt stains on baseball uniform / Polyester 100% |
|||
 |
 |
|||
Before Wash |
After Wash |
Before Wash |
After Wash |
|
Makeup foundation stains / Cotton 100% |
Soy sauce stains / Cotton 100% |
|||
|
|
Before Wash |
After Wash |
Stains on shirt sleeves and collar / Polyester 65% Cotton 35% |
|
|
|
Before Wash |
After Wash |
Makeup foundation stains / Cotton 100% |
|
* Tested by Hitachi. Tested model: BW-DV100E（equivalent model to BW-DX105FJ) / Test program : Normal / Wash 6 kg (60% loading to the test model).
The effect may differ depending on the type and amount of stain and the type of detergent. Dirt stains were applied artificially.
|
|
Before Wash |
After Wash |
Dirt stains on baseball uniform / Polyester 100% |
|
|
|
Before Wash |
After Wash |
(Soy sauce stains / Cotton 100% |
|
* Tested by Hitachi. Tested model: BW-DV100E（equivalent model to BW-DX105FJ) / Normal Wash Program: 6.0 kg (60% loading to the test model). The effect may differ depending on the type and amount of stain and the type of detergent. Dirt stains were applied artificially.
Lead to a high portion of surfactant to water,
allowing for a large amount of oil stain to be trapped.
Oil stains
Surfactant
Move clothes with
large motions
Move clothes with
short, quick motions
Create a
washboard
effect
Penetrate High Concentration of
Detergent Liquid
Detergent is circulated and soaks into
clothes to wash away stains.
* Images are for illustrative purposes only.
*1 The design differ from the selected model.
Lead to a high portion of surfactant to water, allowing for a large amount of oil stain to be trapped.
* Images are for illustrative purposes only.
*1 The design differ from the selected model.
Penetrate High Concentration of Detergent Liquid
* Images are for illustrative purposes only.
Detergent is circulated and soaks into clothes to wash away stains.
* Images are for illustrative purposes only.
In Hot Mist, hot air and a water mist are simultaneously applied to clothes soaked with high concentration of detergent liquid. Clothes will be warmed to a temperature between 30℃ and 40℃,
activating the power of the enzymes in the detergent.
* The image is for illustrative purposes only.
* Follow the instructions on the care label. Not suitable for delicate fabrics. Wash whites separately from colours to avoid colours transfer.
Yellow stains due to discolouration, such as that caused by exposure to sunlight, cannot be removed.
|
|
|
Before Wash |
After Wash |
Under shirt / Cotton 100%
* Tested by Hitachi. Tested model: BW-DV100E (equivalent model to BW-DX105FJ)./ Test program : Normal with 180 mins of Hot Mist / Wash 2 kg.
Clothing stains are from artificially made sebum.
A 180 mins of Hot Mist uses 2 times the usual amount of synthetic detergent powder. The effect may differ depending on the type and severity of the stain and the type of detergent.
|
Gentle Program *1Clothes are washed Recommended for the labels below:
|
|
Delicate Program *2A large amount of water is used with a low flow rate to allow clothes to gently float as they are washed. Recommended for the label below:
|
* Clothes 3 kg or less.
*1 Please use delicate detergent.
*2 Please use liquid neutral detergent / liquid synthetic detergent.
Clothes are washed
gently using centrifugal force
and spin at a low speed.
Recommended for the labels below:
* Clothes 3 kg or less.
*1 Please use delicate detergent.
A large amount of water is used with a low flow rate to allow clothes to gently float as they are washed.
Recommended for the label below:
* Clothes 3.0 kg or less.
*2 Please use liquid neutral detergent / liquid synthetic detergent.
Heats mites lurking in fibres with hot air, before rinsing to wash away allergens (dead dust mites and dung).
Clean in*1 Test laboratory: FCG Research Institute, Inc. / Test method: Measurement (Hitachi standards) of death rate of dust mites attached to the blanket.
/ Test result: Dust mite death rate of 99%.
*2 Test laboratory: FCG Research Institute, Inc. / Test method: Measurement (Hitachi standards) of amount allergens remaining in the blanket (dead dust mites and dung).
/ Test result: Dust mite allergen reduction rate of 90%.
Heats mites lurking in fibres with hot air, before rinsing to wash away allergens (dung and dead mites).
|
Clean in Approx. 150 minutes (1.5 kg or less) |
When you're short of time, wash and dry laundry quickly and easily within the day - even just for one person - such as activewear and daily towels.
*1 The upper limit of washing capacity and its operating time are :
5 kg, approx. 24 mins.
*2 The upper limit of washing and drying capacity and its operating time are :
2.5 kg, approx. 128 mins.
When you're short of time, wash and dry laundry quickly and easily within the day - even just for one person - such as activewear and daily towels.
Wash / 1.5 kg*1 Approx.10 minutes
Wash & Dry / 1.5 kg*2 Approx. 98 minutes
*1 The upper limit of washing capacity and its operating time are :
5 kg, approx. 24 mins.
*2 The upper limit of washing and drying capacity and its operating time are :
2.5 kg, approx. 128 mins.
Socks (polyester / cotton / polyurethane)
Gently dries clothes, suppressing shrinkage and deformation
due to the heat.
* Clothes 3 kg or less. Compared to the Normal program, the amount of water used, and operating time will increase.
Tested by Hitachi. Tested Model: BW-DV100E (equivalent model to BW-DX105FJ). / Test programs for comparison : Normal / Wash & Dry 3 kg and Low Temp Dry / Wash & Dry 3 kg.
The finish depends on the amount, material of the clothes and the type of things that are dried together.
*11 Tested by Hitachi. Test program : Low Temp Dry. Measure by attaching a temperature sensor to the test cloth specified in
The Japan Electrical Manufacturers' Association. The clothes temperature when drying may change depends on the materials of clothes.
Gently dries clothes, suppressing shrinkage and deformation due to the heat.
Clothes Temperature Approx. 65 ℃*1
| Normal Program |
Low Temp Dry Program |
Socks (polyester / cotton / polyurethane)
A shower of clean water cleans both the tubs as the stainless steel tub rotates at high speeds, and the blades and tub rotate to powerfully agitate water in the stainless steel tub and clean off dirt.
* Images are for illustrative purposes only.
1Inside of the Outer Tub
2Outside of the Stainless Steel Tub
3Bottom of the Stainless Steel Tub
4Bottom of the Outer Tub
* Images are for illustrative purposes only.
*11 Test laboratory : Kitasato Research Center for Environmental Science / Test report number : 26_1024 / Test method : Measurement of the rate of decrease of mould on medium plates that are attached to the outer tub and stainless steel tub. / Test objects : Outer tub and stainless steel tub. / Test result : Mould reduction rate of 99%.
*22 Test laboratory : Kitasato Research Center for Environmental Science / Test report number : 26_0024 / Test method : Measurement of the reduction rate of bacteria smeared on plates that are attached to the outer tub and stainless steel tub. / Test objects : Outer tub and stainless steel tub. / Test result : Bacteria reduction rate of 99%.
1Inside of the Outer Tub
2Outside of the Stainless Steel Tub
3Bottom of the Stainless Steel Tub
4Bottom of the Outer Tub
* Images are for illustrative purposes only.
*11 Test laboratory : Kitasato Research Center for Environmental Science / Test Report Number : 26_1024 / Test method : Measurement of the rate of decrease of mould on medium plates that are attached to the outer tub and stainless steel tub. / Test objects : Outer tub and stainless steel tub. / Test result : Mould reduction rate of 99%.
*22 Test laboratory : Kitasato Research Center for Environmental Science / Test Report Number : 26_0024 / Test method : Measurement of the reduction rate of bacteria smeared on plates that are attached to the outer tub and stainless steel tub. / Test objects : Outer tub and stainless steel tub. / Test result : Bacteria reduction rate of 99%.
Easily check the amount of lint accumulated from the washing tub and dispose them without touching by sliding the lint filter.
The lint filter can also be easily cleaned with water.
* The effect may differ depending on the lint sticking condition of the filter.
*11 Images are illustrative purposes only.
Clothes do not get tangled, making them easy to remove.
 |
 |
|
Before Tangle-Free Finish |
After Tangle-Free Finish |
* Clothes 6 kg or less. Required additional time of approx. 2 to 4 mins.
| Colour | Champagne | |
|---|---|---|
| Capacity (Dry Clothes Weight, kg) | Washing | 10.5 |
| Drying | 5.5 | |
| Standard Water Consumption (L) | Washing | 103 (Normal Program) |
| Washing & Drying | 126 (Normal Program) | |
| Auto Dosing System | Liquid Detergent & Fabric Softener | Normal / Speedy / Favorite / Delicate / Blanket / Low Temp Dry / Mites Removal / Gentle (Fabric Softener only) |
| Program | Wash | Normal / Eco / Speedy / Favorite / Delicate Gentle / Blanket / Mites Removal / Tub Wash |
| Wash Dry | Normal / Speedy Favorite / Blanket / Low Temp Dry | |
| Dry | Normal / Gentle / Low Temp Dry / Hygiene / Tub Dry | |
| Technologies & Features | Washing | AI Wash |
| Auto Dosing System | ||
| Ultra-Stream Wash | ||
| Hot Mist | ||
| Spinning | Warm Air (Tangle-Free Finish) | |
| Rinsing | Ultra-Stream Rinse | |
| Drying | Water Cooling Dehumidification | |
| Hygiene | Auto Self Clean | |
| Filter | Translucent Sliding Lint Filter | |
| Washing Tub | Stainless Steel | |
| Main Motor | DD Inverter | |
| Max, Spin Speed (rpm) | 850 (1,000 Wash and Dry) | |
| Rated Power Consumption (M) | Washing | 450 |
| Drying | 1,010 | |
| Rated Voltage (V) & Frequency (Hz) | AC220-240 & 50 | |
| Dimensions (W x D x H), mm) | 610 x 660 x 1,105 | |
| Weight (Net / Gross, kg) | 55 / 60 | |
