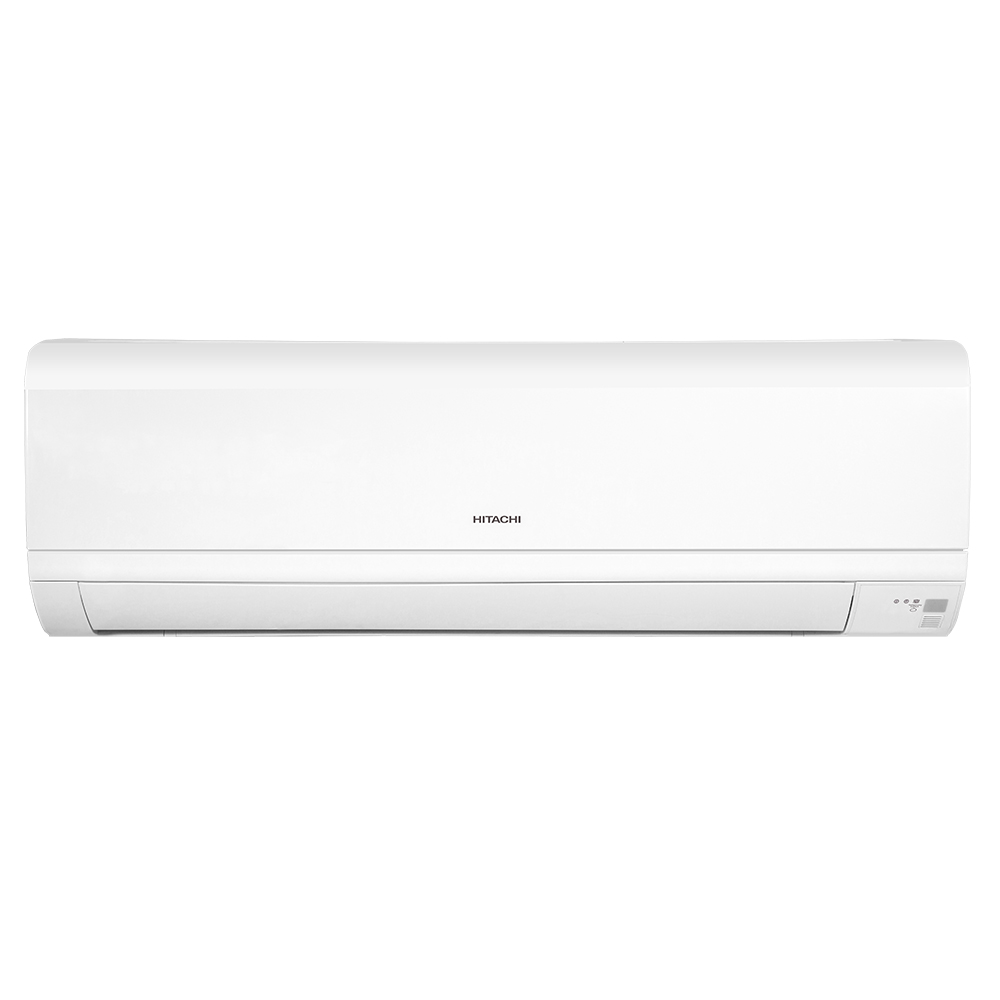

RAK-QH24PCASM New

Inverter Series (R32)

Tech Spec
Support

Features

PM2.5 Wasabi Filter

99% removal of microscopic 2.5µm pollution particles⁽¹⁾, antibacterial, anti-allergen and deodorant.

Freeze, Melt & Clean

FrostWash

A manually self-cleaning feature that freezes the heat exchanger down to -15℃ to trap pollutants and dusts in the ice and then melts them to flush them away. This leaves the unit sanitized and dramatically reduces the possibility of pollutants being spread from the AC unit across the room.

Viruses¹

99.0%

removal

Bacteria²

99.0%

removal

Mold³

95.0%

removal

Contributes to
sleep quality

Air Sleep Timer

Set a comfortable temperature to help you fall asleep. Once the timer is being set, it will automatically shift to silent operation, and gradually rise the set temperature by +2℃ in 2 hours. This prevents the room from getting too cold and reducing energy consumption.

Tech Spec

Rated Power Supply	50Hz, 220-240V
Cooling Capacity	6.2 (0.9 - 6.6) kW
	BTU / h (Rated) : 21150
	BTU / h (Max) : 23200
Energy Star Rating	★★★★★
CSPF	Wh/Wh : 5.15
EER	BTU/h Watt : 11.75
Total Power Input	Watts(min - max) : 1,800 (350 - 2,000)
Total Amperes	A : 8.61 - 7.89
Air Flow	m3/min (H/M/L) : 16.0 / 15.0 / 12.0 / 8.5 / 7.0
Indoor Sound	dB (H/M/L) : 49 / 48 / 40 / 33 / 30
Outdoor Sound	dB : 52
Max Length / Min Length / Max Height of Piping	m : 20 / 3 / 10
Diameter for Liquid / Gas	mm : 6.35 / 12.7
Power Supply	Indoor
Net Dimension	Indoor (W x H x D, mm) : 900 x 300 x 230
Net Dimension	Outdoor (W x H x D, mm) : 658 x 530 x 275
Package Dimension	Indoor (W x H x D, mm) : 970 x 360 x 300
Package Dimension	Outdoor (W x H x D, mm) : 875 x 625 x 390
Net Weight	Indoor / Outdoor (kg) : 10.0 / 32.0
Gross Weight	Indoor / Outdoor (kg) : 12.0 / 33.5
Refrigerant	R32
