EP-M70E

Made in Japan (Glass Panel）
53m2
Humidifying
  • Twetter
  • Share on LinkedIn

Colour


  • Pearl White

Features

Allergy UK Awarded
Filtration System

Allergy UK Awarded Filtration System

Hitachi’s Air Purifiers were awarded the Allergy UK Seal of Approval in recognition of their proven ability to reduce exposure to allergens.

  • Tested by Allergy UK (The British Allergy Foundation).
  • Tested with house dust mites and pollen.

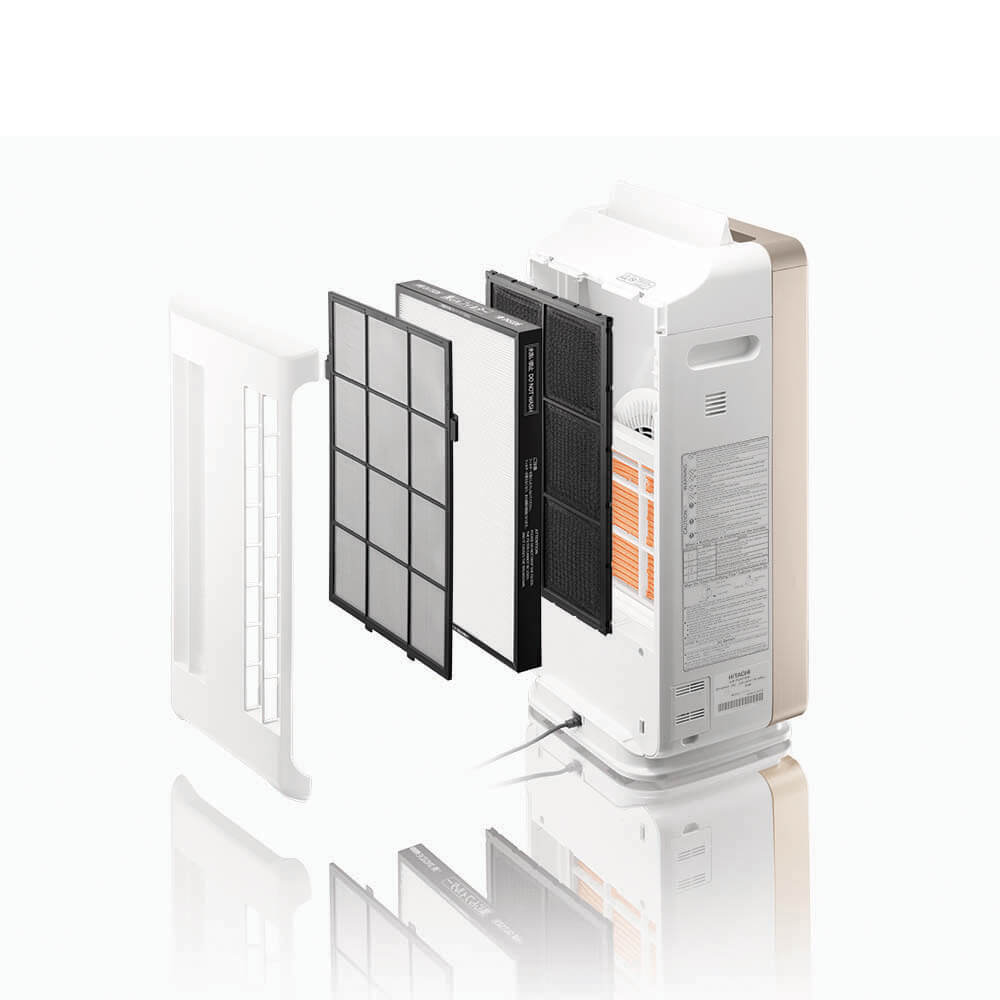

Stainless Clean System

Stainless Clean System

The stainless filter is not only hygienic but also easy to clean.

1Stainless Steel Coating Flap

Eliminate Bacteria*1

2Stainless Net (Outlet)

Eliminate Bacteria*1

3Stainless Steel Coated Pre-Filter*2

Eliminate Bacteria*1   Easy Maintenance

4Washable Deodorizing Filter

5Allergen-Free HEPA Filter

6Silver Ion Fan

Suppress Bacteria*3

*1Not all of the bacteria in the air released by the air purifier are eliminated. Antibacterial effect of the (1) stainless pre-filter, (2) stainless flap, and (3) stainless net (outlet)

Testing authority: (1) and (2) Boken Quality Evaluation Institute, (3) Kitasato Research Center for Environmental Science Test method: JIS Z 2801 (film contact method) Test item: Attached bacteria Sterilization method: Using the metal ion contained in stainless steel Test results: 99% of bacteria eliminated after 24 hours.

*2Stainless-steel coating.

*3There is no anti-bacterial effect in the air released by the air purifier. Anti-bacterial effect of the silver ion fan

Testing authority: Boken Quality Evaluation Institute Test method: JIS Z 2801 (film contact method) Test item: Attached bacteria Anti-bacterial method: Anti-bacterial components included into the silver ion fan Test results: Anti-bacterial activity value 5.1 (anti-bacterial effect is present when the activity value is more than 2.0).

Deodorizing Filter

Deodorizing Filter

Washable Deodorizing Filter, Can be Washed with Water

Filter can be washed with water to restore deodorizing power*. This helps to reduce four major types of odor bases: nitrogen, aldehyde, acid and Sulfur components.

How Deodorizing Power is Restored

Gradual Loss of Deodorizing Power

Washing with Water

Deodorizing Power Restored

Nitrogen-Based

Ammonia (Pet odors, etc.), Trimethylamine (Foul fish odors, etc.)

Aldehyde-Based

Acetaldehyde (Cigarette odors, etc.), Isovaleraldehyde (Odors of grilled meat, etc.)

Acid-Based

Acetic Acid (Cooking odors including pickling odors), Isovaleric Acid (Body odors, odor of laundry drying indoors, etc.)

Sulfur-Based

Hydrogen Sulfide (Odors from drain outlet and toilets), Methylmercaptan (Odors from rotten vegetables)

Results of odor elimination tests in a 25㎥ test space using single odor components. Odor elimination performance differs under conditions of actual use in a room. Tests performed by Hitachi.

Results of deodorizing performance tests performed in a 1㎥ test space with single odor components. Deodorizing performance differs depending on the space where the unit is actually used. Testing authority: Japan Food Research Laboratories.

*Depending on the odor, washing with water may not eliminate it. Restoration of deodorizing performance by washing with water gradually declines.

Allergen-Free HEPA Filter

Allergen-Free HEPA Filter

Filter Surface Area: Approx. 2.8㎡, Large surface area effectively captures dust

Effectively Captures Fine Particles

Multi-layered structure of Allergen-Free HEPA Filter for fine dust effectively catches fine particles including dust, cedar pollen and airborne mold. It also suppresses the PM2.5.

HEPA Filter Collects99.97%

or more dust containing fine particles of 0.3µm at a rated air flow

Based on performance of a single HEPA filter complying with the JIS Z 8122. Overall room dust removal performance may differ.

Suppresses Activity of Captured Allergen Substances

The allergen-free components of the HEPA Filter for fine dust suppress the activity of cedar, birch & ragweed pollen, dust mite dung & cat dandruff that have been captured.

  • Testing authority: Nichinichi Pharmaceutical Co., Ltd Test method: ELISA Suppression method: Application of anti-allergen agent to filter Test results: Cedar pollen 96% suppression, birch pollen 90%, ragweed pollen 96%, American dust mite dung 93%, European dust mite dung 91%, and cat dandruff 85%. Value in percentage calculated by Hitachi.

Example of Particle Sizes (Surveyed by Hitachi)

PM2.5, Pollen, Dust Mite Dung & Carcass, Mold, Cat Dandruff, Bacteria, Virus Clusters, Single Viruses

Air Purifier Suppresses Airborne Viruses and Bacteria*

This is the effect on airborne viruses and bacteria after 13 minutes in a 25㎥ test space, not the proven effect in a space where the filter is actually used. Effects may differ according to conditions and method of use. Tests performed conform to the Japan Electrical Manufacturers’ Association standard (HD-124).

*Virus/ bacteria suppression effect

Testing authority: Kitasato Research Center for Environmental Science Test method: Performance evaluation test conforming to the Japan Electrical Manufacturers’ Association standard (HD-124) conducted in a 25㎥ test space. Same test applied for bacterial suppression effect Test item: 1 type of airborne virus/1 type of airborne bacterium Test results: 99% or more suppressed in 13min Model used: EP-L110E (with max air flow).

Wide and Speedy
Dust Collection

Wide and Speedy Dust Collection

Increased air intake surface area achieved on the back lateral sides. By widely collecting dust from both sides, a 13㎡ room can be quickly purified.

Wide Range Air Intake

PM2.5 Sensor

PM2.5 Sensor

Purifies PM2.5 Particles with a Massive Air Volume – Much Quicker than The Normal Automatic Air Purification Mode

Switches to high-sensitive detection mode and purifies fine dust with max air flow operation.*1 HEPA filters enable the collection of fine particles*2 of 0.1µm and larger (0.5µm or larger with the dust sensor detection). Continues super-sensitive patrol operation even after cleaning the air.

99% of 0.1 to 2.5µm Particles Caught*3
— Ready to Remove PM2.5 Particles

New particles entering from outside during ventilation or by other means are not considered here.

PM2.5 is a collective term for particulate matter of 2.5µm or less in diameter. Removal of particulate matter less than 0.1µm has not been verified. Further, not all harmful substances in the air can be removed. Results were obtained in a sealed 32㎥ space and not in an actual living space.

Comparison of Purification Time

Dust Concentration

*1Comparison with normal automatic air purification mode. Time required for reducing an initial concentration of approx. 1,000µg/㎥ to 35µg/㎥. Normal automatic air purification mode: 38min, PM2.5 sensing automatic operation mode: 20min. Surveyed by Hitachi.

*2Cigarette smoke.

*3Odor sensor does not activate during the PM2.5 sensing mode.

Humidifying

Humidifying

Two selectable modes provide the desired level of humidity.

50% Humidity

Humidifying Mode

This humidifies clean air to increase the humidity in a room to about 50%. And it can be used in combination with the deodorizing course.

60% Humidity

Skin Moisturizing Mode

Room humidity can be increased up to about 60%*. This helps keep your skin moist in the dry season and when using air conditioning.

*Humidifying capability may change due to temperature, humidity and other conditions.

  • The effect differs between individuals. It also differs depending on the season, room temperature and other conditions.

Low Noise Operation

Low Noise Operation

During Silent airflow operation, the noise level is less than 15dB, so it won't disturb you when sleeping.

  • Noise level differs depending on the model.

Touch Panel Operation

Touch Panel Operation

Touch panel has been incorporated on front glass panel.

Clean Monitor Changes Its Color to Notify Status

Glass Panel

Flat front glass panel is easy to clean – simply wipe off dirt. Reinforced glass is also scratch-resistant. Color does not fade and matches home interiors.

Tech Spec

Body Color Pearl White
Power Supply AC220-240V 50-60Hz
Applicable Floor Space (m2)*1 53
Humidifying Capacity (mL/h)*2 Approx. 700
Tank Capacity (L) Approx. 2.5
Mode & Course Air Purify, Humidify, Skin Moist, Pollen, Odor, Rapid, Absence, Eco
PM 2.5 with sensor
STAINLESS CLEAN
Inverter
Eco Mode (Efficiency vs Silent mode (%) 16
Removable Odors Pet, Tobacco, Cooking, Rotten vegetables, Rotten fish, Grilled meat, Toilet, Sewage outlet
Suppressible Substances Mold, Bacteria, Viruses, Cedar pollen, Dead house dust mite
Air Flor Rate Max, High, Medium, Silent
Air Flow Clean Air Mode (m3/min) : Max : 7.2, High : 4.0, Medium : 2.7, Silent : 1.1
Clean Air & Humidifying (m3/min) : Max : 6.0, High : 4.0, Medium : 2.7, Silent : 1.6
Power Consumption Clean Air Mode (W) : Max : 59, High : 16, Medium : 11, Silent : 8
Clean Air & Humidifying (W) : Max : 41, High : 16, Medium : 11, Silent : 9
Sound Clean Air Mode (dB) : Max : 49, High : 38, Medium : 30, Silent : 15
Clean Air & Humidifying (dB) : Max : 47, High : 38, Medium : 30, Silent : 20
Filter Type (Approx. filter life) Washable Prefilter*3 : (Stainless)
Allergen-free HEPA Filter*3 : H13 (10 years)
Washable Deodorizing Filter*3 : (10 years)
Humidifying Filter*4 : (120 months)
Off Timer 4 hours
Sensors Odor, Dust, Humidity, Temperature
Power cord (m) 1.8
Dimensions (H x W x D ) (mm) 669 x 360 x 254
Weight (kg) 12
*1
Applicable floor space for operating the unit at max. air flow rate (JEM1467; The Japan Electrical Manufacturers' Association)
*2
Measurement conditions: 20℃, 30% humidify (JEM 1426)
*3
In accordance with the JEM 1467 standard. In a test of dust collecting and deodorizing capacity with 5 cigarettes smoked per day, the period of time after which air purifying took twice as long as the initial time, and the odor removal rate became
*4
In a test performed with humidifying operation of 8 hours a day and washing with tap water once a month, the periods of time after which level of humidification became half the initial level.
*
3,4 Since there are theoretical values, under actual conditions of use, replacement may be required after a shorter period of time.
◎
Specifications and designs are subject to change without notice.
◎
Colour tone of actual products may differ from those shown on the websıte.
